Underground Cable Fault Location Services
The rising demand for electrical energy increases the importance and priorities of uninterrupted services to customers. Thus, faults in power distribution networks have to be quickly detected, located and repaired. Instrument Sales Corporation,Bhilai offers 24 x 7 timely service for underground cables of up to 33 KV working voltage all over India from its nearest located branch. Our wide range of quality products including Underground cable fault location, Hi Pot Testing, Cable route tracing , power cable fault locator, and pipe & cable detector accomplishes the needs of all kinds of industries.
Our state of art, full featured electric cable fault location system tests, pre-locates, and pin-points the precise position of the cable fault within minimum time especially in a long distance range through the powerful Arc reflection method used for pre-location of high resistance faults. Low resistance faults can be located with only the TDR and without having to use high voltage methods.

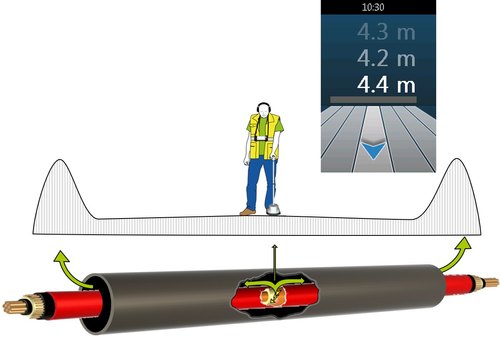

We have got excellence in power cable testing, electrical cable testing, high voltage testing of cables, and to detect LT cable fault, underground cable fault location, underground cable faults, cable fault testing, and cable fault finding. Burning is resorted to only in extreme circumstances. 1000 joules of surge energy provide the necessary power for accurately pin pointing cable faults with the acoustic method. HV Test is conducted on cable to cross check the health of cable. With our timeless services, and supreme quality buried cable detector, underground cable fault locator or detector.
We Provide Cable Testing Service in Chhattisgarh,Odisha, Bihar,Jharkhan,Maharashtra.
Cable Fault Loaction in Raipur,Cable Fault Loaction in Bhilai, Cable Fault Loaction in Bilaspur, Cable Fault Loaction in Jagdalpur, Cable Fault Loaction in Raigarh, Cable Fault Loaction in Orissa,Cable Fault Loaction in Jharkhand, Cable Fault Loaction in Bihar
Transformer Leak Repair Kit

Polywater® PowerPatch® Transformer Leak Repair permanently repairs oil and gas leaks commonly found in:

– Bushing & portal gaskets
– Bolt & nut leaks
– Welding defects
– Valve & meter connections

  • QUICK PLUGGING ACTION - A fast cure putty stops oil and SF6 gas leaks.
  • PERMANENT SEAL - A 2-part paste overcoat forms a permanent seal.
  • DURABLE - Finished seal is impervious to water, oil, and weather.
  • FAST - System can plug and seal active leaks in minutes.
  • SAVES MONEY - Faster than welding. Transformer may stay in service.
  • SIMPLE - Eliminates "bagging" or removal from field.
  • CONVENIENT - Kit contains all materials needed to fix leak while in the field.

The fast, durable repair of oil and gas leaks with PowerPatch is an economical and effective means to protect essential electrical grid assets. The repair of leaks in the field with PowerPatch reduces risks to the environment and personnel, and increases the overall performance of the electrical grid.

Leak repair with PowerPatch reduces the length and frequency of power disruptions to ensure the maximum efficiency of the grid. PowerPatch is an easy and fast way to repair leaks in transformers by following a step-by-step process. PowerPatch is successfully applied in numerous installations around the globe, in extreme climates and difficult spots.

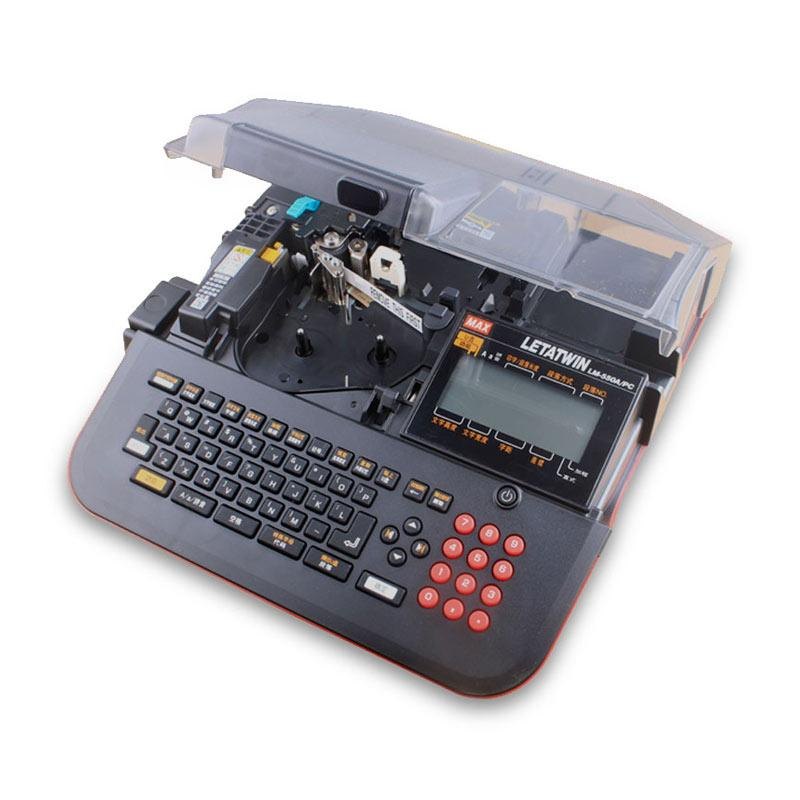

FERRULE PRINTING MACHIN

FERRULE PRINTING MACHIN

Printing method Thermal transfer
Resolution 300dpi
Available Character sizes 2 mm, 3 mm, 6 mm
Input modes Alphanumeric, Symbol input
Weight 2 kg
Dimensions 250 x 300 x 85 mm
Model LM 550E
Display LCD Graphic ( 160 x 64 dots )
Brand LETAWIN
Language English

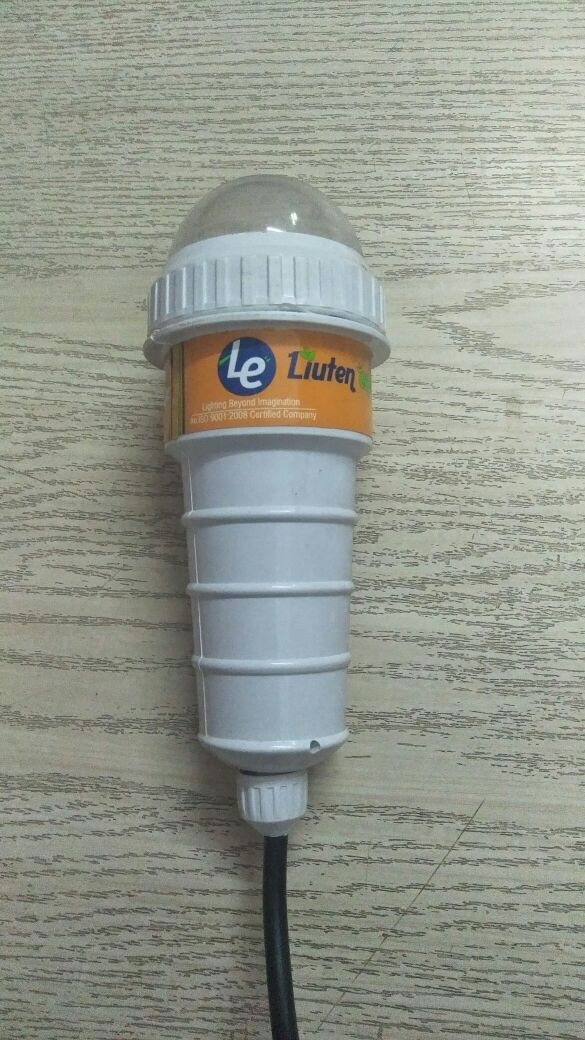

24V AC HAND LAMP AND FLOOD LIGHT

LIUTEN offers 24V AC LED Hand Lamp & LED Flood lights for maintenance/confined space applications as per industry standards.

These lights are used during shutdown/plant maintenance as these lights have to be moved from one location to another location. In this application is recommended

 to avoid 220V AC (as per safety norms) so as to prevent electrocution hazard. The applications include maintenance of kiln, mill, boilers, etc. during the plant shut down. It could even include tunnels etc.



PARAMETERS  SPECIFIED VALUE
ELECTRICAL PARAMETERS
INPUT VOLTAGE RANGE  24V AC  OR 24V DC
RATED WATTAGE  38 W
TOTAL CONSUMPTION OF SYSTEM 40W
POWER FACTOR  > 0.90
TOTAL HARMONIC DISTORTION  < 5%
LED CURRENT 350mA
CONTROL CIRCUIT  CCCV COMPATIBLE TO LED

OPTICAL PARAMETERS
LED MAKE  OSRAM/EDISION/SEOUL
LED EFFICIEENCY  > 100 LUMEN/WATT
COLOUR TEMPERATURE 5500K TO 7000K
COLOUR RENDRING INDEX >70
TOTAL LUMEN OUTPUT  4200 LUMENS
OPTICAL EFFICIENCY  >90%
BEAM ANGLE  AS PER OPTICS
LED LIFE  50000 HRS.

MECHANICAL PARAMETERS
LUMINAIRE CASING  DIE CAST ALUMINIUM
COVER TOUGHENED GLASS
PCB TYPE FOR DRIVER GLASS EPOXY FR4 & FOR LED MCPCB
WIRE & CABLES  CONNECTING WIRE USED INSIDE SHALL BE LOW SMOKE HALOGEN FREE FIRE RETADENT
FUNCTIONAL PARAMETERS
INGREE PROTECTION THE ENTIRE HOUSING LED & DRIVER ARE IP-65
